3d CAD design, finite element analysis, modal analysis, excellent structure, especially suitable for the production of motor rotor, precision electronics. Equipped with automatic feeding device, it can achieve high efficiency and high precision stamping.
Hotline
+86-0516-8353111160 seconds of human response,Give technical advice within 30 minutes,Free 24 hours plan design
3d CAD design, finite element analysis, modal analysis, excellent structure, especially suitable for the production of motor rotor, precision electronics. Equipped with automatic feeding device, it can achieve high efficiency and high precision stamping.
● combined prestressed integral frame bed, four screws pretension up to twice the nominal force, better rigidity
● slide block eight-side guide, adjust the closed height hydraulic lock, stable precision
● adopt dynamic balance structure, at the same time use import balance air bag, dynamic accuracy is better
● spindle multi-point support and imported high-precision rolling bearing, improve the rigidity of the machine tool and smooth operation, reduce the total clearance and heat of the support position
● forced cooling, good lubrication
● stepless speed change, touch screen interface, easy to operate
● microcomputer electrical control system, minimum external electrical components, high stability, can be removed and replaced by themselves, easy maintenance.

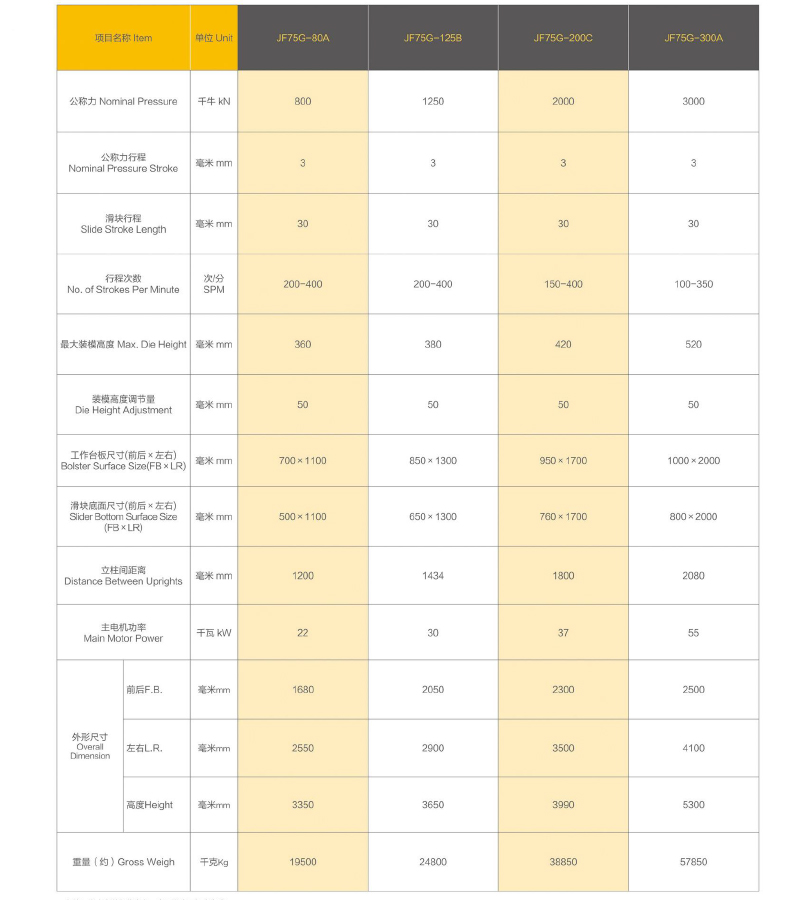

Main technical parameters
